1. Find the charger in Fuuse

   • Locate the charger you're working with.

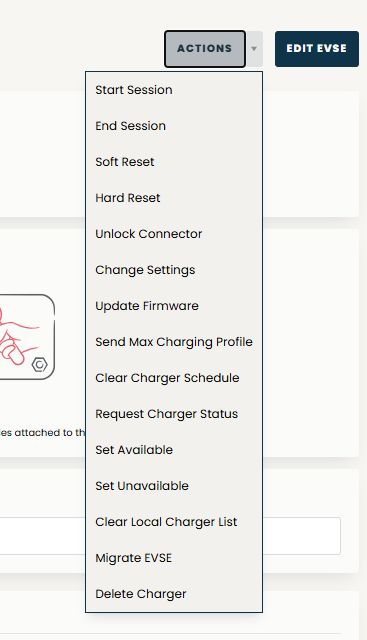

2. Click the 'Actions' Button

   • You’ll see an 'Actions' button next to your charger, to the right



3. Select 'Change Settings'

   • After clicking 'Actions,' choose the option that says Change Settings.

4. If the Settings Page Doesn’t Load

   • If the page doesn’t load correctly, click the 'Request Config' button.

5. Refresh the Page

   • After you click 'Request Config,' a 'Refresh' button will appear. Click this, and the configuration should load.

6. Locate the "G_ChargerMode" Field

   • Once the settings have loaded, look for the field called "G_ChargerMode".

7. Ensure 'G_ChargerMode' is Set to 1

   • This setting should be set to 1 for Fuuse to be able to control the charger and authorise sessions.



8. If 'G_ChargerMode' is Not Set to 1

   • If the value in this field is anything other than 1, replace it with 1.

9. Click the 'Change' Button

   • After updating the value, click the 'Change' button on the right to save the setting.

10. Return to the Main Charger Page

    • Go back to the main page where you manage your charger.

11. Click 'Actions' Again

    • Click the 'Actions' button once more.

12. Select 'Hard Reset'

    • From the dropdown, choose 'Hard Reset' to push through the new changes.

Important:

• A Hard Reset will reboot the charger.

• The charger may show as unavailable for a few minutes during this process.

• Please do not change any other settings on your charger without consulting with the Fuuse Support Team
