Viewing charging site

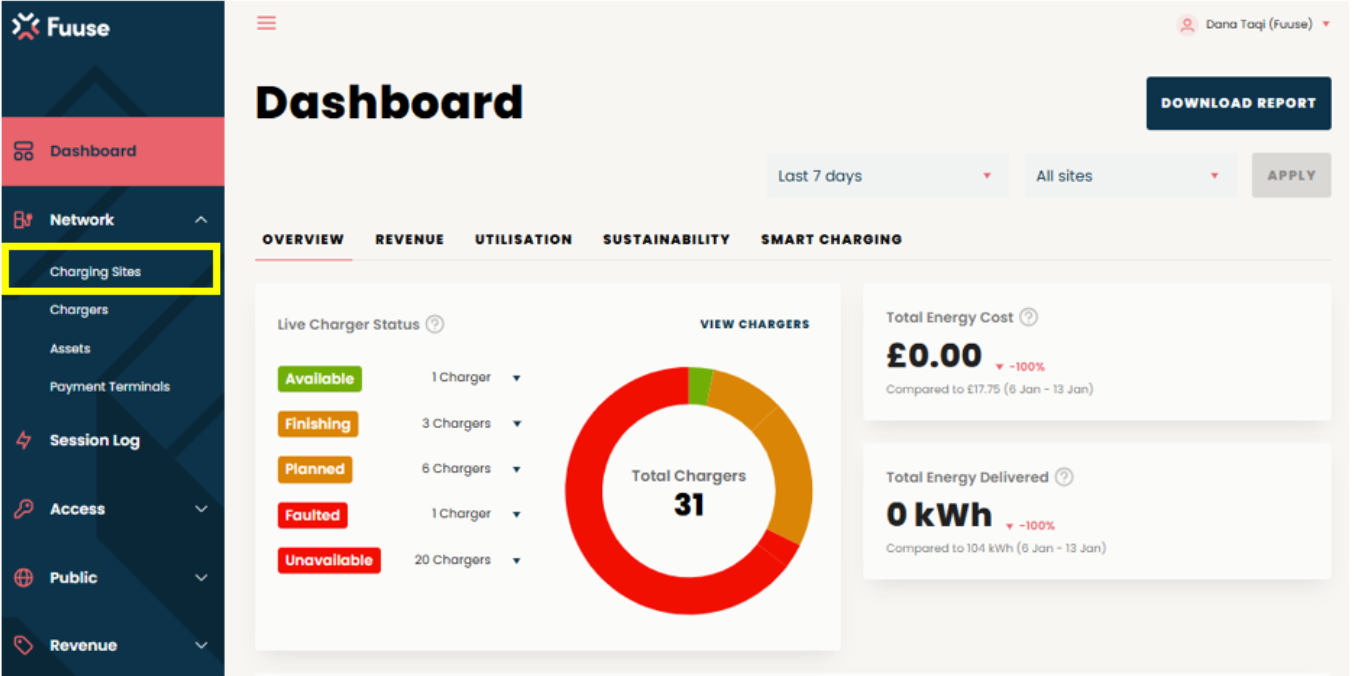

Fuuse makes it easy to navigate through your portfolio of EV chargers and charging sites. Once you have logged in to the web portal at app.fuuse.io, use the navigation sidebar to click on the 'Network' dropdown tab, followed by "Charging Sites", as shown below.

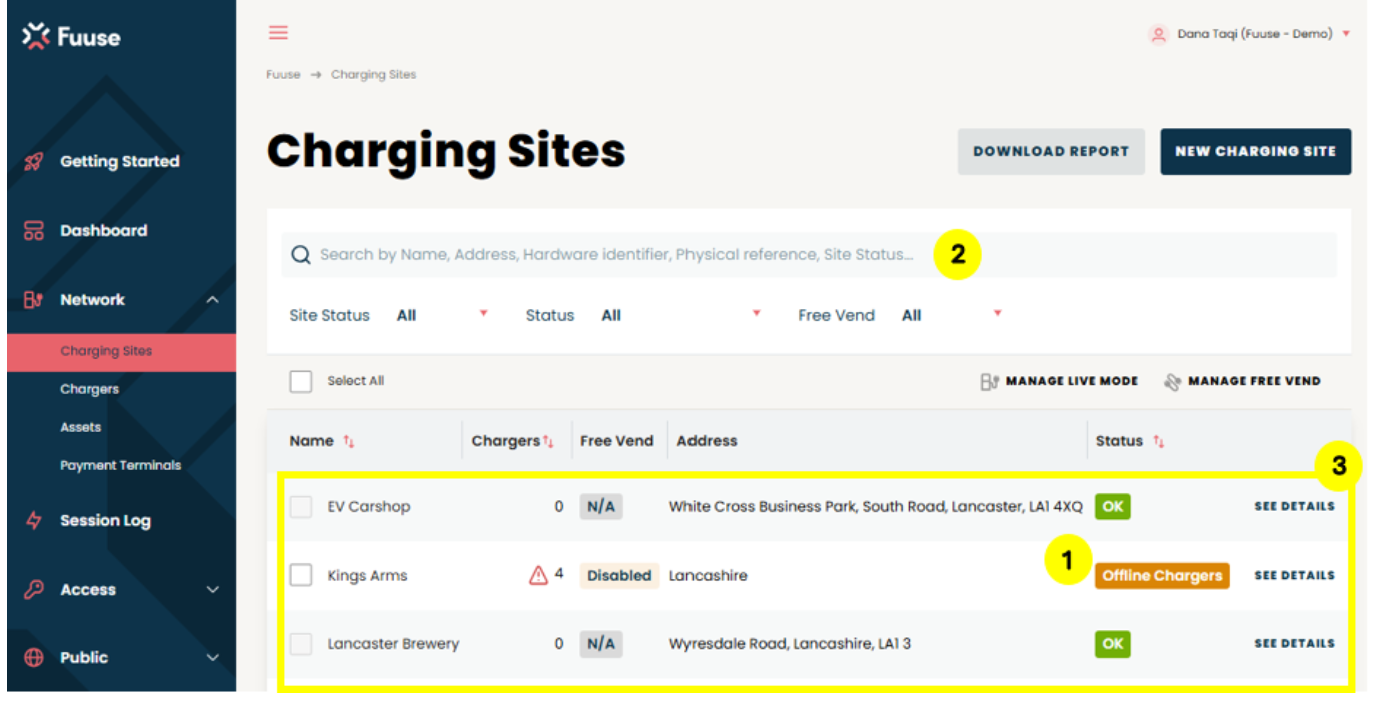

The charging sites page lists of all the charging sites within your network. Static information such as a site's name and address, the status field allows you to easily spot any warnings or faults associated with the charging hardware on a site (1).
To find a specific site, use the search bar at the top of the charging sites list to search by site name, address, EVSE name or OCPP ID/serial number (2).
To access additional information about a site, simply click the "See Details" button (3) located on the right side of the list. This action will direct you to a new screen where you can view all chargers associated with that site.

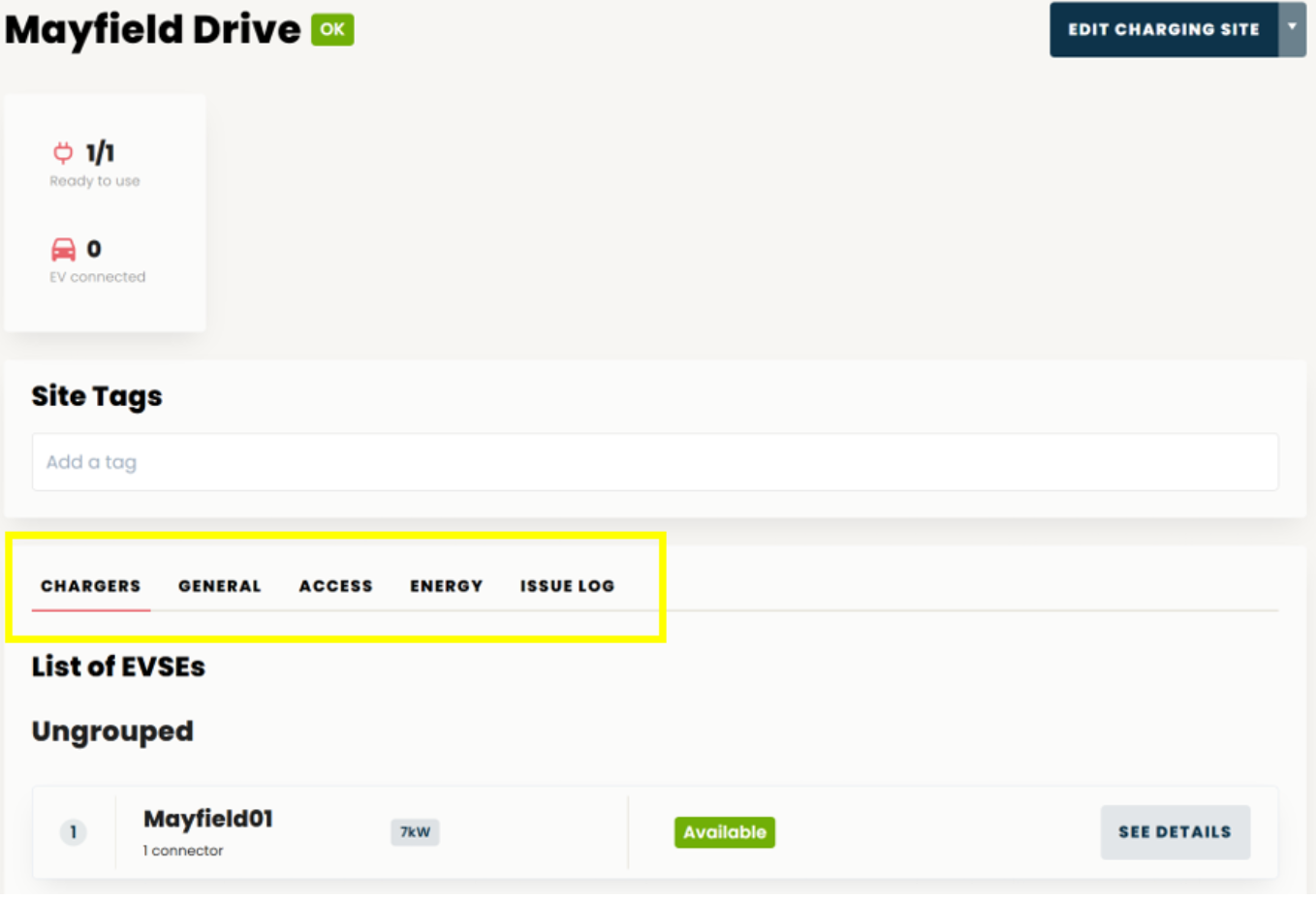

Once you have clicked on the 'see details' button, you'll find essential general information about the site, including its name. Just below this section, a series of tabs are available, allowing you to explore more detailed information about the site and the EVSEs (Electric Vehicle Supply Equipment) present on it:
- Chargers: a list of the connectors available on the site, which includes the connector name, rated power output, and its current status (you can hover over the status to view definition).
- General: site information, site location and any photos you have uploaded onto the portal.
- Access: the times at which the site is open for drivers to charge their vehicles, and is the site has been made visible to the public.
- Energy: This section provides an overview of the site's energy costs, detailing the amount the site pays for energy per kWh (which differs from the fees charged to drivers using the chargers). Additionally, you can find information about the type of energy source utilised and any load balancing preferences that have been configured within the portal.
- Issue log: Fuuse automatically compiles any issues reported by the chargers, including faults and offline statuses, which will be displayed in the issue log list. Additionally, any concerns raised by back office users, such as reports of vandalism, will also be included in this list.
To update any site information, simply click the "Edit Charging Site" button located at the top-right of the page. For further guidance on setting up a site, please refer to our guide.
Viewing chargers

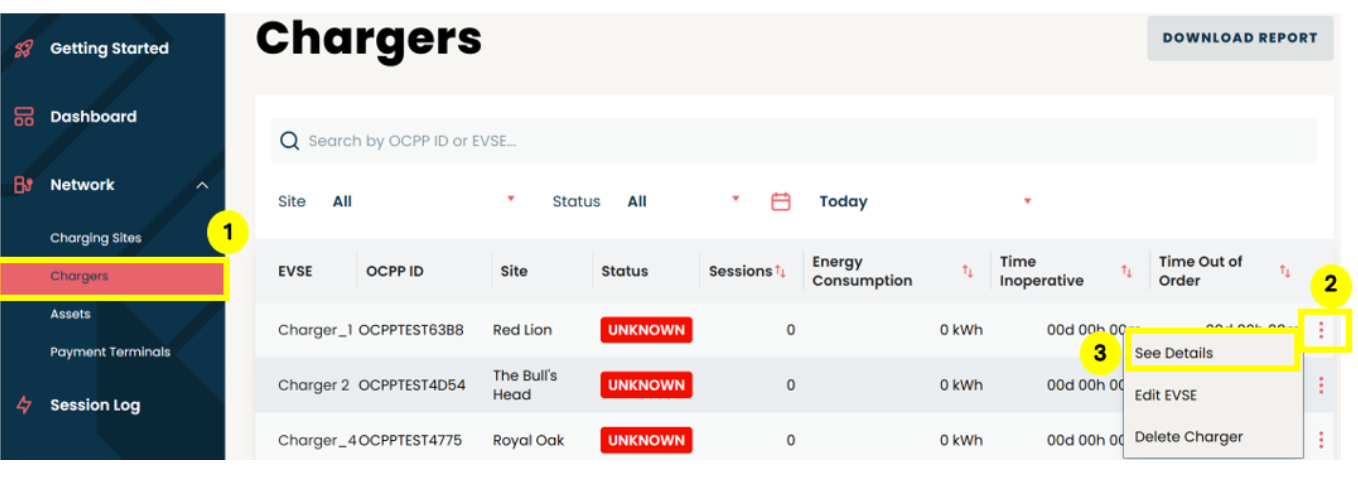

To access detailed information about a specific EVSE, navigate to the "Chargers" tab (1) and select the corresponding "ellipsis" button (2). Then, click on the "See Details" (3) button to open the dedicated details page, as illustrated below.

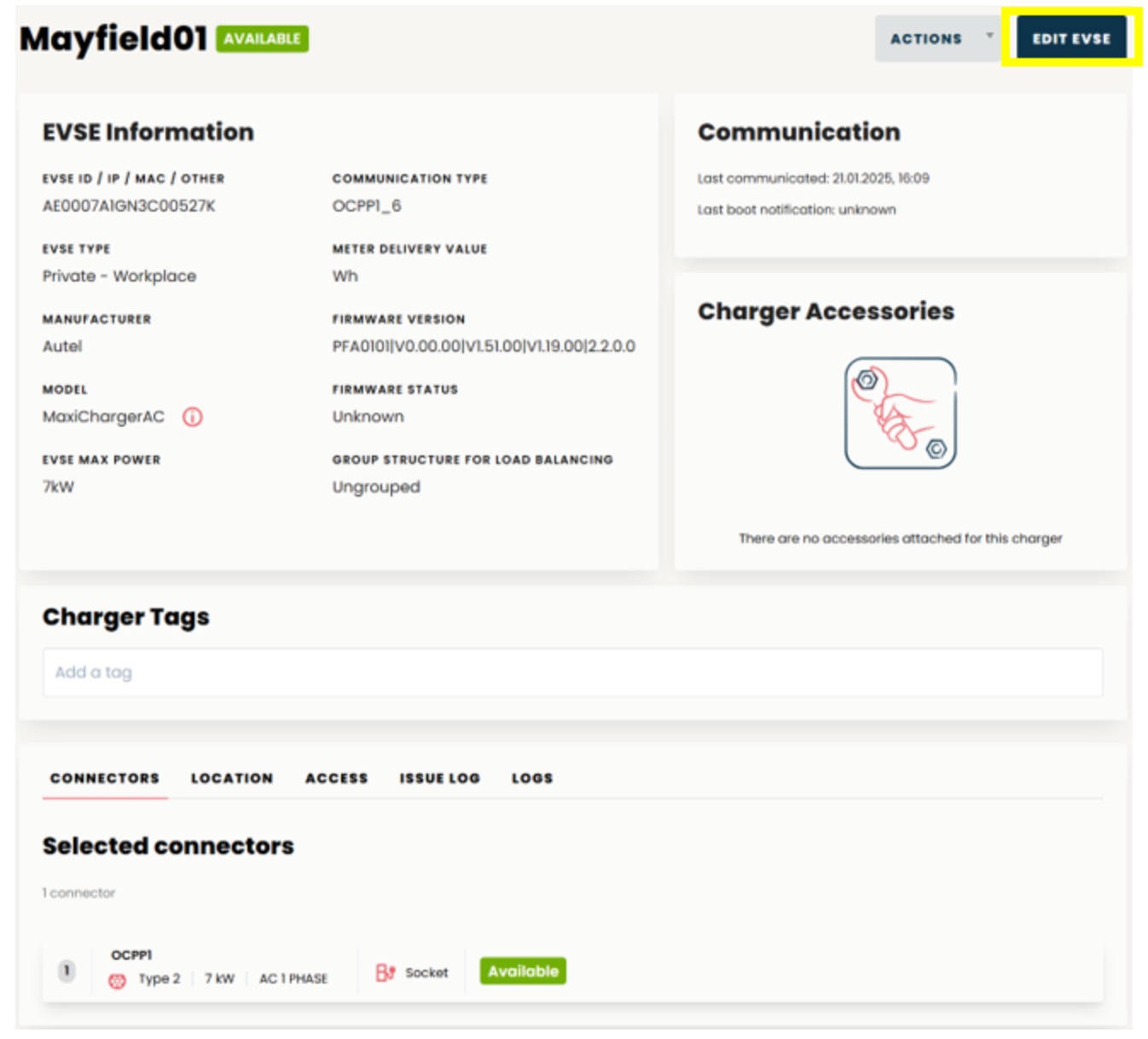

To modify any details related to the EVSE, simply click the "Edit EVSE" button located at the top-right corner of the page. For comprehensive guidance on the processes of setting up and commissioning an EVSE, please refer to our guide.
